Rosen Lite Rope Lights

The Rope Light System (also known as Highwire or Cable System) is well suited
to commercial or domestic applications using a
6mm insulated cable rated at 300va

Go to the dedicated Rope Light Information Page to help you with your choices

To page down to ROPE LIGHT FITTINGS click this link


CABLE & ACCESSORIES

6 mm Insulated Cable

6mm cable

6sq mm cable insulated with a clear sheath.
The maximum run should be no more than 8metres.
25amps 300watts Max.

W139006 £2.25 exc. VAT per metre


Cable Holders
Priced and Packed as a set of two items
All Prices
exc. VAT

cable holders
Cable Holder 1
E 888 30
32mm base
n/a

Cable Holder 2
E 888 31
50mm base
£16.43

Straining Sets
Priced and Packed as a set of two items
All Prices exc. VAT

straining sets

Prices are for a pack of two pieces. All items in chrome.

Sets 1 & 3 are for wall-to-wall runs.
Sets 2 & 4 for ceiling to floor runs.
Sets 5 & 6 are both insulated.

The larger 50mm bases (sets 3 & 4) come with two retaining screws and offer a more substantial support.

Straining Set 1
E 888 32
40mm x 115mm
n/a

Straining Set 2
E 888 34
40mm x 140mm
n/a

Straining Set 3
E 888 33
50mm x 115mm
n/a

Straining Set 4
E 888 35
50mm x 140mm
£30.68

Straining Set 6
E 888 35i
50mm x 140mm
n/a

Power Feed
Priced and Packed as a set of two items
power feed
Power Feed
E 888 50
£5.93
2 pcs. per pack ~ wire not included
Price exc. VAT


Image opposite shows power feed connections to a Transformer.

For details see Transformers


Ceiling Supports
Priced and Packed as a set of two items
All Prices exc. VAT

ceiling support

Prices are for a pack of two pieces. All items in chrome.

Ceiling Support 1
E 888 40
40mm x 50mm
n/a

Ceiling Support 2
E 888 42
40mm x 100mm
n/a

Ceiling Support 3
E 888 44
40mm x 150mm
n/a

Ceiling Support 4
E 888 41
50mm x 50mm
£16.43

Ceiling Support 5
E 888 43
50mm x 100mm
£12.50
Ceiling Support 6
E 888 45
50mm x 150mm
£13.88

Cable Rerouter
Priced and Packed as a set of two items
All Prices exc. VAT

cable rerouter

Prices are for a pack of two pieces. All items in chrome.

Cable Rerouter 1
E 888 36
32mm base
£12.68

Cable Rerouter 2
E 888 37
50mm base
£16.13

Rerouter
Priced and Packed as a set of two items
rerouter
Rerouter
E 888 53
£6.68

Price exc. VAT
All items in chrome.
Steel wire not included.


Parallel Rerouter
Priced and Packed as a set of two items
parallel rerouter
Parallel Rerouter
E 888 52
£8.18

Price exc. VAT
All items in chrome.
Steel wire not included.


Steel Wire Holder
Priced and Packed as a set of two items
steel wire holder
Steel Wire Holder
E 888 39
32mm base
£11.93

Price exc. VAT
All items in chrome.
Steel wire not included.


Insulated Connector
Priced and Packed as a set of two items
888 51 insulated connector
Insulated Connector
E 888 51
10mm x 60mm
£14.18

All items in chrome.


In-line Adjuster
Priced and Packed as a set of two items

In-line Adjuster
E 887 31
12mm x 100/130mm
n/a

Price exc. VAT
All items in chrome.


Steel Support Wire

Steel Support Wire
E 888 22
£0.95 per metre

Price exc. VAT
Diameter 1.2mm.
This is not a current carrying cable.


rosenlite
ROSEN LITE Rope Lights Fittings

Shuttle


Shuttles 50, 40 & 60
(Shuttle 50 shown with glass shade)






Shuttles 20 & Shuttle 10
(Shuttle 10 shown with glass shade)

For Glass Shades go to Shades

Shuttle 10
E 880 40
75mm
n/a
12v max 50watt
Cable width 6cm

Shuttle 20
E 880 41
75mm
£22.43
12v max 50watt
Cable width 6cm
Multi-Directional

Shuttle 40
E 880 45
165mm
n/a
12v max 50watt
Cable width 15cm

Shuttle 50
E 880 46
165mm
£32.93
12v max 50watt
Cable width 15cm
Multi-Directional

Shuttle 60
E 880 47
165mm
£35.18
12v for AR111 lamp
50 / 75 / 100 watts
Cable width 15cm
Multi-Directional

AAll Prices exc. VAT

Aerial


Aerial 50 (not available), Aerial 20 and Aerial 10

Aerial 10
E 880 00
max 490mm
£20.18
12v max 50watt

Aerial 20
E 880 02
max 490mm
£22.43
12v max 50watt

All Prices exc. VAT

Telescope


Telescope 10 and 20
(Telescope 10 shown with glass shade)

For Glass Shades go to Shades

Telescope 10
E 880 28
230 - 600mm
£21.68
Telescope 20
E 880 29
230 - 600mm
£13.43
The Telescope 10 is for a GU5.3 lamp
The Telescope 20 is for an AR111 lamp
Adjustable Drop
12v max 50watt

Price exc. VAT

Compass


Compass 10



Compass 10
E 880 30
480mm
n/a
12v max 50watt

Compass 20
E 880 31
315mm
n/a
12v max 50watt

Compass 30
E 880 33
160mm
n/a
12v max 50watt
Drop 210mm

All Prices exc. VAT

Compass 20

Compass 30

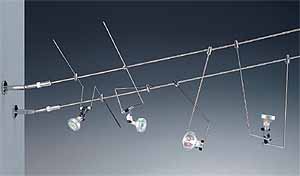

Divider


Divider 40, 20 and 10

Divider 10
E 880 20
£22.43
12v max 50watt

Divider 20
E 880 22
£20.18
12v max 50watt

Divider 40
E 880 26
n/a
12v max 50watt

All Prices exc. VAT

Aladdin

Aladdin 10
E 881 60
120mm x 310mm
n/a

12v max 50watt
Teflon Shade Included

Available White, Blue, Red, Green or Orange

Price exc. VAT


Gemini

Gemini 10
E 883 00
Max drop 1500mm
n/a

12v max 50watt x 2

Shade not included

Price exc. VAT


Victor

Victor 10
E 881 20
Max 1500mm
n/a


12v max 50watt

Shade not included

Price exc. VAT


Globe



Globe 1
E 883 60
165mm x 60mm
£33.68

12v max 50watt



Globe 2
E 883 61
165mm x 60mm
£34.43

12v for AR111 lamp
50 / 75 / 100 watts



Globe 3
E 883 62
165mm x 230mm
n/a

12v max 50watt



Globe 5
E 883 66
175mm
x 238 - 630mm
n/a

12v max 50watt
Adjustable Drop


All Prices exc. VAT

Shelf System

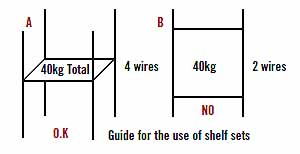

By using the Shelf Support Sets as shown below the Rope system can be used to carry a 12volt feed
to supply lighting fixtures and also support a number of glass shelves as required


All Prices exc. VAT


Shelf set 1 cable fitting

Set 1
E 888 60
£9.68

4 pieces per pack

Diam.: 15mm
Length: 13mm


Shelf set 2 cable fitting



Set 2
E 888 61
£11.63

4 pieces per pack

Diam.: 18mm
Length: 25mm


Shelf set 3 cable fitting



Set 3
E 888 62
£11.63

4 pieces per pack

Diam.: 15mm
Length: 29mm


Shelf set 4 cable fitting



Set 4
E 888 63
£15.38

4 pieces per pack

Diam.: 18mm
Length: 25mm


Shelf set 5 cable fitting

Set 5
E 888 64
£10.43

2 pieces per pack

Diam.: 18mm
Length: 33mm



Rosenlight Glass Shades, Shields, Cowels and Louvres

To see the full range of Glass Shades, Shields, Cowels, and Louvres go to the Shades page by clicking the link below

Shades





Go to Top of Page
